High Load-bearing Capacity 2mm Stainless Steel Rope Nets For Railing Handrail
Our architectural ferrule type cable mesh is made from high tensile stainless steel 304/316/304L/316L. The stainless steel rope construction is available in 7*7 or 7*19 configurations, with 1*7 and 1*19 options also available.
- The ferrule rope mesh consists of ferrules and rope, with ferrules being essential components that determine the size and longevity of the mesh
- Ferrules are available in stainless steel and aluminum variants - for marine environments, we recommend 316 stainless steel ferrules for superior corrosion resistance
- All mesh is handcrafted, whether woven type or ferrule type
Product Attributes
| Attribute |
Value |
| Material |
Stainless Steel 304/316/304L/316L |
| Product Name |
SS stainless steel wire cable mesh |
| Hole Shape |
Diamond hole shape |
| Usage |
Protecting mesh, decorative wire mesh, etc. |
| Length |
Customized: 10m/roll, 30m/roll, 50m/roll |
| Width |
0.1m-8m, customized size |
| Sample |
Available and free (by air, 30*30cm) |
| Mesh Aperture |
20mm*20mm-300mm*300mm |
| Warranty |
10 years warranty |
| Thickness |
1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm |
Technical Specifications
| Specification |
Details |
| Material |
Stainless steel 304 304L 316 316L |
| Rope Diameter |
1/8" 3/32" 1/16" 3/64" and other diameters available |
| Rope Construction |
7*7 and 7*19 (1*7 and 7*19 also available) |
| Mesh Apertures |
1"*1" 1-1/2"*1-1/2" 2"*2" 3"*3" 4"*4" |
| Application |
Decorations, safety fence, animal enclosure, bird netting, railings |
| Connection |
Knotted or with ferrules |
Product Applications
Zoo fence, animal fence, animal cages, bird cages, Ocean Park, landscape protection, park, afforest adornment beautification, zoo, Bridges, the stadium fence, supermarkets, airports, exhibition hall, exhibition, acrobatic performances, opera, film and television play props, construction, playground use, metal curtain wall, indoor and outdoor decoration, protection engineering, etc. It is the ideal choice for modern decoration and protection.
With the popularity of more users and the inspiration of designers, more classic works will be created.
Key Advantages
Excellent flexible performance for versatile installations
Virtually indestructible construction
Superior impact resistance against rain, snow, and hurricanes
High strength with strong toughness, allowing free-angle curving and folding
Extended service life exceeding 30 years
Our Service
Our factory located in Anping County,China .It covers more than 20000 sqm now . We have three different workshops for producing different products .
Online Technical Support
Onsite Installation
Onsite Training
Onsite Inspection
Free Spare Parts
Return and Replacement
3D model design
Packaging
Standard packaging includes wooden cases. Special packaging options are available upon request to meet specific shipping or handling requirements.
Product Images
Stainless steel wire rope mesh product overview

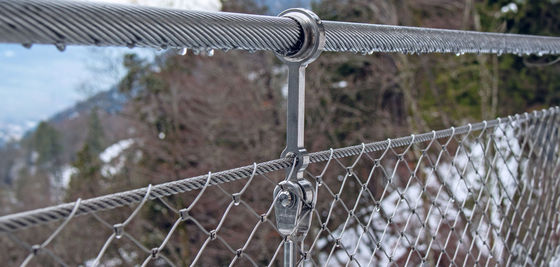

Close-up view of stainless steel rope mesh structure
Balustrade Applications

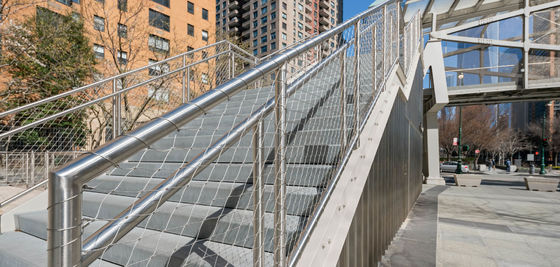

Stainless steel rope mesh used in balustrade application

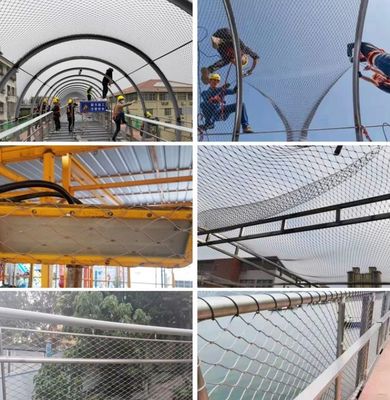

Architectural use of stainless steel rope mesh
Zoo Mesh Applications
Stainless steel rope mesh used in zoo enclosure
