商品の詳細:
|
| 製品名: | くさびワイヤー スクリーン | 材料: | ステンレス鋼線、炭素鋼、カスタマイズ。 |
|---|---|---|---|
| 応用: | フィルター、スクリーン、 | 表面処理: | 研磨 |
| 特徴: | 耐食性、耐久性、耐酸性、長時間使用可能 | 幅: | 1 メートルまたは 1.22 メートル、カスタマイズされた |
| 使用法: | ケミカル、オイル/エアフィルター、 | 長さ: | 2 メートルまたは 2.44 メートル、カスタマイズされた |
| サンプル: | 利用可能 | 形: | 正方形、円形または他の形状、チューブ、曲線にカット可能 |
Wedge wire is a welded steel structure, primarily used for filtration, separation, and retention media. It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.
| Product Name | Wedge Wire Mesh |
|---|---|
| Sheet Size | 1m*2m, 2m*3m, Customized Sizes |
| Sheet Design | Tube Design, Flat Sheet Design, Curved Sheet Design, Customized Special Sheets |
| Material | Stainless Steel 304, Stainless Steel 316, Stainless Steel 201, Carbon Steel, Customized |

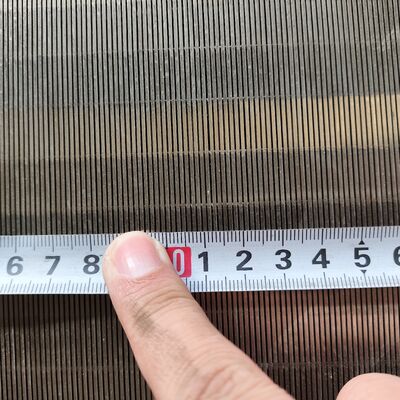

| Slot Size | 0.2mm-5mm (Customized Based on Customer Demand) |
| Support Rod | 2*3mm, 3*4mm, 6mm Round Rod, Customized |
| Usage | Liquid Filtering, Solid Separation |

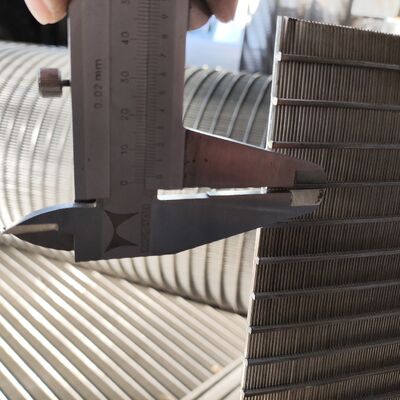

| Profile Wire | Wedge Shape Width: 0.75mm, 1.0mm, 1.5mm; Height: 1.5mm, 2.0mm, 3.0mm |
Packaging: Each sheet is covered with plastic film, then packed in wooden pallets or cartons.
Delivery: By sea, air, or express (DHL, FedEx, UPS) according to customer's needs.
curved design

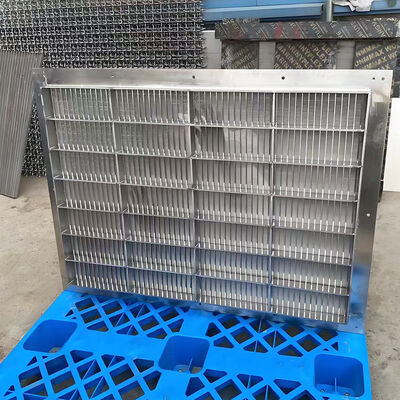

flat sheet
We offer full customization service to meet your specific needs. Our factory is available for customized products including:
If you have product drawing, please send us , we will check and back to you as soon as possible.
Customized service, multiple styles to choose from,
supports customizing based on provided drawings,
designs display:
